AST 40 Dimensions
Mechanical Seals and Gasket Supply is our Specialty.
American Seal and Packing is a leading manufacturer & distributor of mechanical seals, Grafoil, gasket material, cut gaskets and quality o-rings providing innovative solutions to mechanical seal problems.
We're finding better ways to serve our customers all the time. In addition to our expanding line of industrial mechanical seals, we're updating and upgrading this web site to provide you more information about our company and our products.
|
|

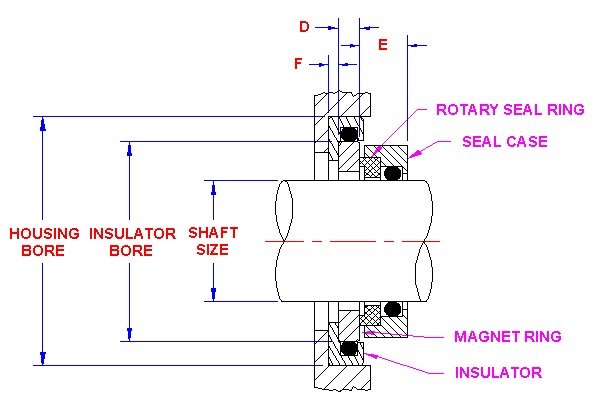

AST 40
MAGNETIC SEAL BEARING ISOLATOR |
| Standard insulator sizes are shown. To fit smaller housing
bores, a step can be added to the back of the insulator. Seals to fit common ANSI
pumps are available from stock. |
SHAFT
SIZE |
INSULATOR
BORE |
HOUSING
BORE |
D |
E |
F |
| 1.000 |
1.5625 |
1.875 |
.187 |
.303 |
.062 |
| 1.062 |
1.625 |
1.9375 |
.187 |
.303 |
.062 |
| 1.125 |
1.6875 |
2.000 |
.187 |
.303 |
.062 |
| 1.187 |
1.750 |
2.0625 |
.187 |
.303 |
.062 |
| 1.250 |
1.8125 |
2.125 |
.187 |
.303 |
.062 |
| 1.312 |
1.875 |
2.1875 |
.187 |
.303 |
.062 |
| 1.375 |
1.9375 |
2.250 |
.187 |
.303 |
.062 |
| 1.437 |
2.000 |
2.3125 |
.187 |
.303 |
.062 |
| 1.500 |
2.0625 |
2.375 |
.187 |
.303 |
.062 |
| 1.562 |
2.125 |
2.4375 |
.187 |
.303 |
.062 |
| 1.625 |
2.1875 |
2.500 |
.187 |
.303 |
.062 |
| 1.687 |
2.250 |
2.5625 |
.187 |
.303 |
.062 |
| 1.750 |
2.3125 |
2.625 |
.187 |
.303 |
.062 |
| 1.812 |
2.375 |
2.6875 |
.187 |
.303 |
.062 |
| 1.875 |
2.4375 |
2.750 |
.187 |
.303 |
.062 |
| 1.937 |
2.500 |
2.8125 |
.187 |
.303 |
.062 |
| 2.000 |
2.5625 |
2.875 |
.187 |
.303 |
.062 |
| 2.062 |
2.625 |
2.9375 |
.187 |
.303 |
.062 |
| 2.125 |
2.6875 |
3.000 |
.187 |
.303 |
.062 |
| 2.187 |
2.750 |
3.0625 |
.187 |
.303 |
.062 |
| 2.250 |
2.8125 |
3.125 |
.187 |
.303 |
.062 |
| 2.312 |
2.875 |
3.1875 |
.187 |
.303 |
.062 |
| 2.375 |
2.9375 |
3.250 |
.187 |
.303 |
.062 |
| 2.437 |
3.000 |
3.3125 |
.187 |
.303 |
.062 |
| 2.500 |
3.0625 |
3.375 |
.187 |
.303 |
.062 |
| 2.625 |
3.375 |
3.750 |
.375 |
.422 |
.125 |
| 2.750 |
3.500 |
3.875 |
.375 |
.422 |
.125 |
| 2.875 |
3.625 |
4.000 |
.375 |
.422 |
.125 |
| 3.000 |
3.750 |
4.125 |
.375 |
.422 |
.125 |
| 3.250 |
4.000 |
4.375 |
.375 |
.422 |
.125 |
|
