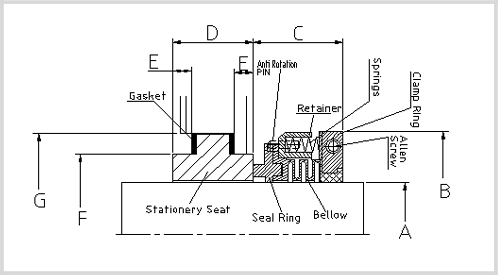

Installation Dimension in Inches SEAL SIZE - A B C D E F G 1.000" 2.187" 1.062" 0.750" 0.156" 1.625" 2.000" 1.125" 2.375" 1.125" 1.062" 0.250" 1.750" 2.125" 1.250" 2.520" 1.125" 1.062" 0.250" 2.000" 2.400" 1.375" 2.750" 1.125" 1.062" 0.250" 2.125" 2.656" 1.500" 2.875" 1.125" 1.062" 0.250" 2.250" 2.780" 1.625" 2.935" 1.375" 1.062" 0.250" 2.437" 2.900" 1.750" 3.125" 1.375" 1.062" 0.250" 2.500" 3.020 1.875" 3.250" 1.375" 1.062" 0.250" 2.750" 3.280" 2.000" 3.375" 1.375" 1.062" 0.250" 2.875" 3.530" Dimensions are for reference only & Subject to change
